Holophane - TRIS

Photometry Filter

Lumen

Colour Temperature

Power

Distributions

Asymmetrical

Lumen (lm)	Colour Temperature (K)	Distribution
2,070	3,000	Asymmetrical
2,880	3,000	Asymmetrical
3,060	3,000	Asymmetrical
3,820	3,000	Asymmetrical
2,150	4,000	Asymmetrical
2,995	4,000	Asymmetrical
3,970	4,000	Asymmetrical
3,970	4,000	Asymmetrical

Download all Photometry and BIM Data

Gallery

Key Features

The upper part of the structure is separated from the lower one and it is lightened by 3 posts. When on, the structure of TRIS disappears from sight, transformed into light. A series dedicated to the urban furniture, suitable for pedestrian areas and parks.

Applications

External

Residential

Public Spaces

Distribution

Asymmetrical

Specification

Extruded aluminium alloy body. Die-cast body and flange made of aluminium alloy with very low copper content. A4 Stainless steel screws. Fully concealed floor fixing flange. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. PMMA diffuser Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on products.

Copy specification to clipboard

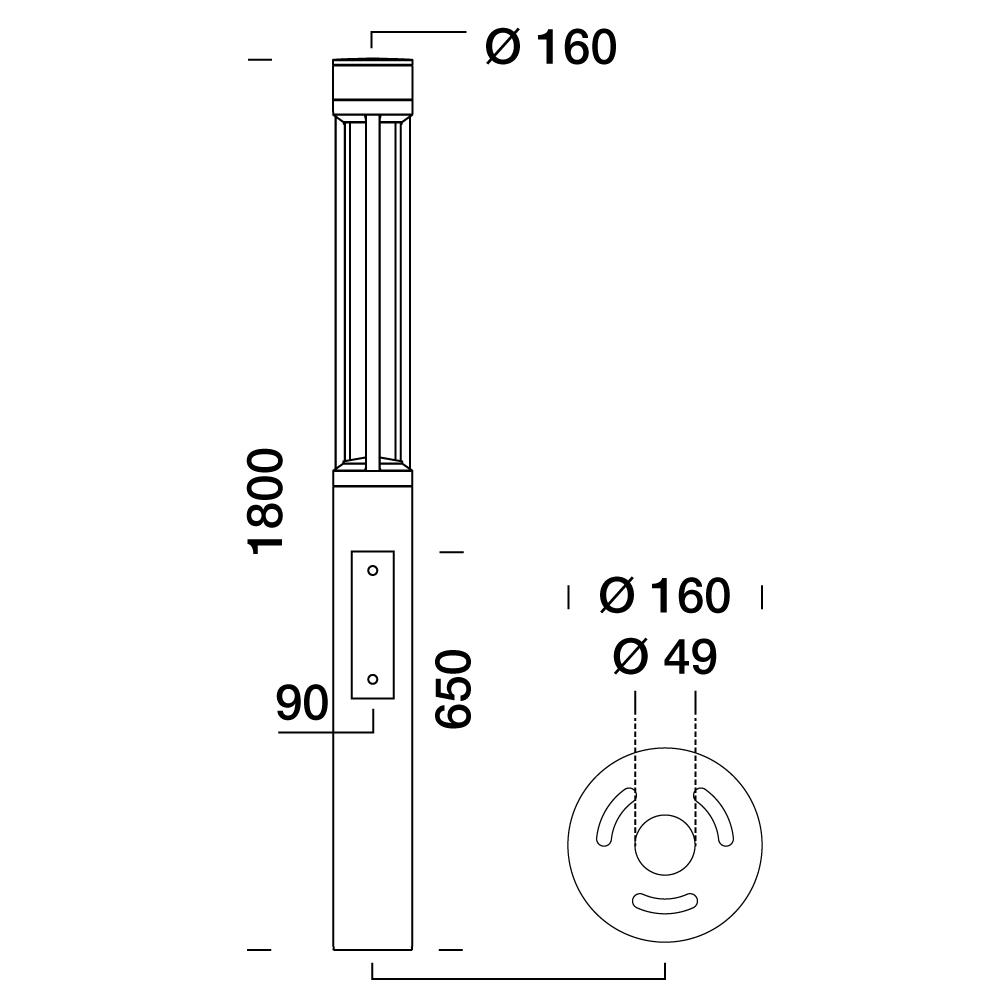

Dimensions

TRIS

Product code: TRB

This collection is defined by classic elegant lines because of a linear design which is sober, free of sharp corners and generated by a cylindrical volume.

Lumen	2,070 - 3,970
Power consumption	21 - 45
Distributions	1
IK Rating	IK10
IP Rating	IP66
Colour range	3,000 - 4,000
