Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
3703,00012°
3854,00012°
7403,00012°
7704,00012°
6603,00012° / 44° (2 lights)
6854,00012° / 44° (2 lights)
2903,00044°
3004,00044°
5803,00044°

Key Features

Individual or grouped parallelepipeds in drawings of emptiness or solidness, create a visual dialogue of great impact. Thanks to the flexibility of the base element, TETRA achieves to meet every need for lighting in several fields of application: walls, surfaces of vehicular traffic, pathways, gardens and parks.

Applications

Distribution

12°
12° / 44° (2 lights)
44°

Specification

Front frame and back cover in die-cast aluminium with very low copper content. A4 stainless steel screws, wall fixing bracket in painted stainless steel. No visible screws. High luminous efficiency diffusing PMMA lens. This allows to have a high interdistance installation between several fixtures while maintaining uniform illumination. Operating at mains voltage, IP68 connector included. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray.

Copy specification to clipboard

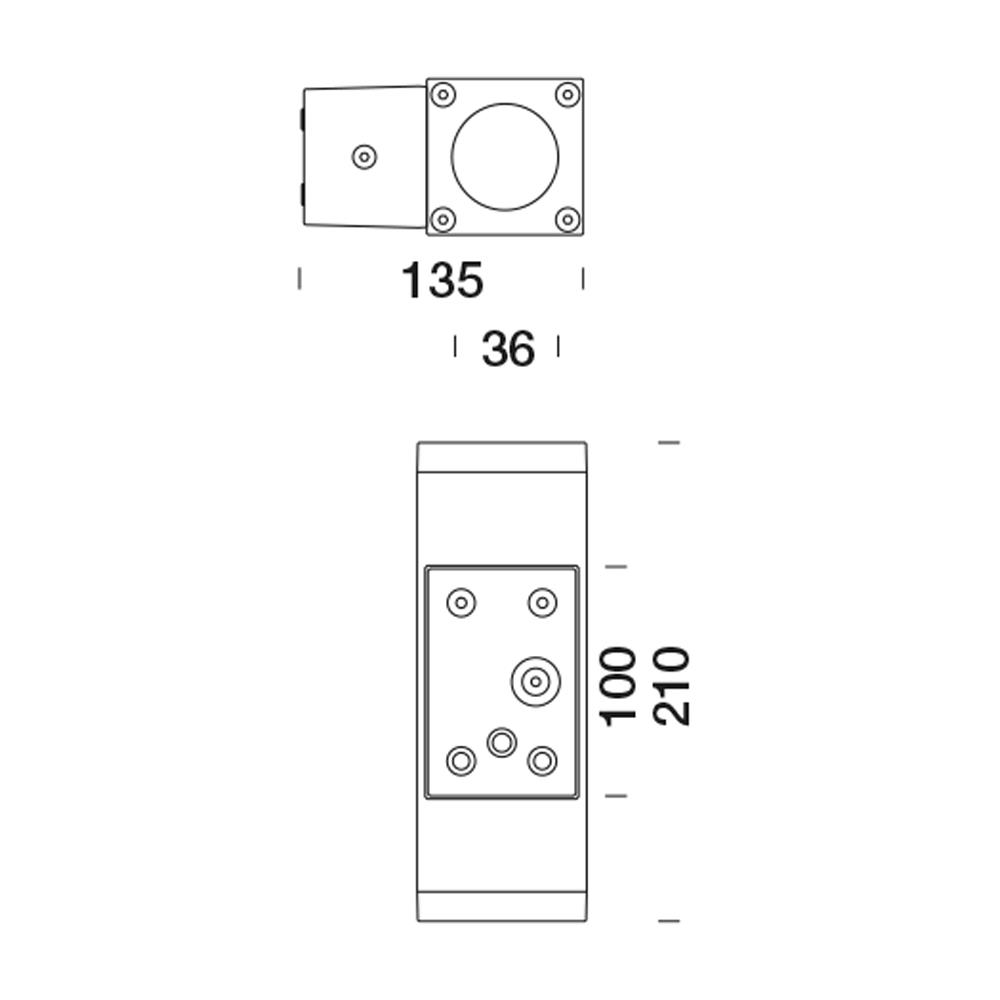

Dimensions
